Deflection Testing

Deflection testing gauges used to check flexible pipe ovality

Uses a deflection gauge or ovality prover to detect pipe deformation after backfill, protecting flow capacity and structural integrity.

Enquire Today

Confirming pipe shape and integrity after backfilling

Deflection testing is a post-installation check that newly laid sewer or stormwater pipes have kept their round shape and structural integrity. It confirms that no deformation has occurred from concrete encasement or backfill pressure, and is required for Section 73, Sydney Water and council compliance, as well as by Hunter Water, Central Coast Council, Shoalhaven Water and other water authorities.

How deflection testing works

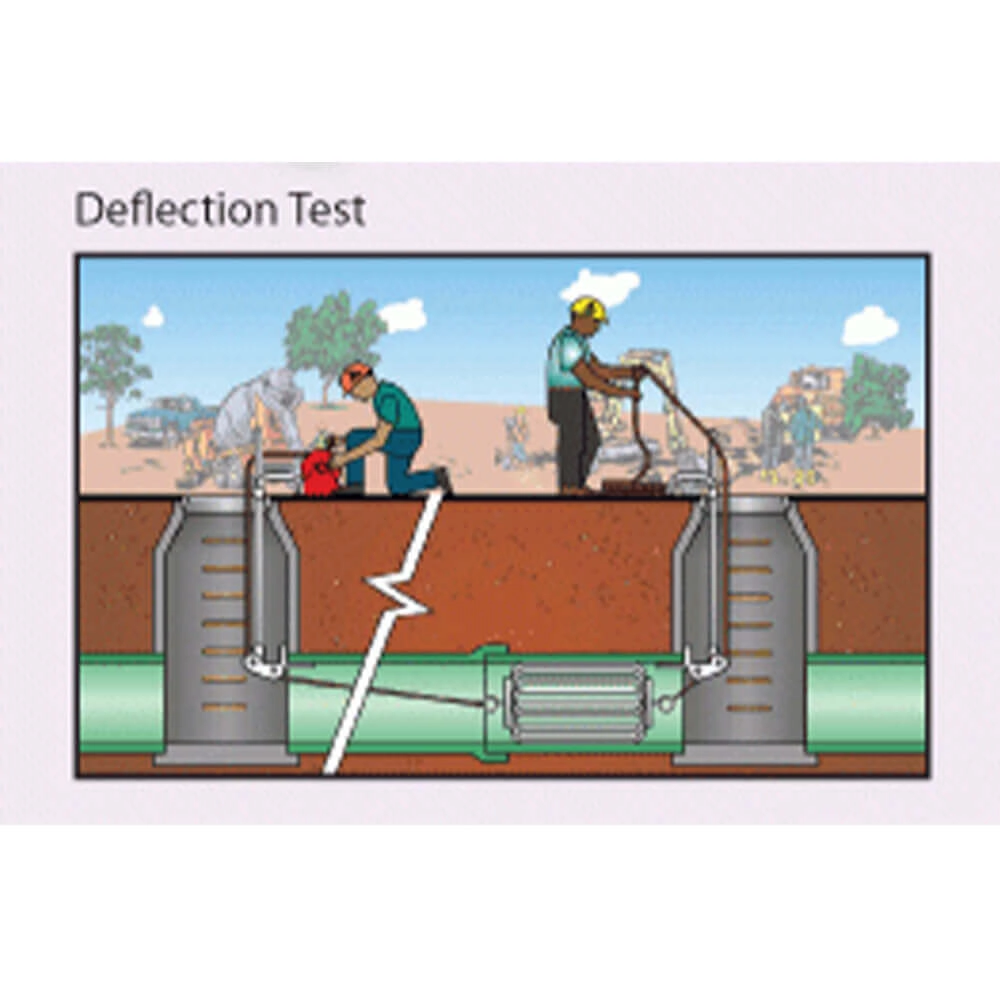

A metal prover, slightly smaller than the pipe’s internal diameter, is pulled through the full length of the pipe. If it passes cleanly, the pipe has acceptable ovality. Any resistance indicates narrowing, compression or misalignment that could affect performance, and the location is recorded.

For non-contact ovality checks, CCTV inspection can also be used to assess the pipe’s internal profile.

What deflection testing identifies

  • Squashed or compressed sections caused by concrete or backfill
  • Deformed areas that may weaken the sewer or stormwater network
  • Blockages and misalignment requiring remediation
  • Ovality compliance for Sydney Water and council approval

Suitable applications

  • Sewer and stormwater installations
  • Projects with encased or backfilled pipes
  • Sites requiring ovality certification before handover
  • Systems undergoing CCTV ovality verification

What you receive

A NATA accredited report recording the sections tested, the prover size used and the result for each, ready for your engineer, certifier or water authority. You can view our accreditation on the NATA register.

Key benefits

  • Meets Sydney Water technical specifications and Section 73 requirements
  • Finds problems before they become costly repairs or environmental damage
  • Supports compliance with council and utility requirements

Deflection depends on how well the pipe was bedded and backfilled, so it pairs with compaction testing. Read why deflection and compaction testing belong together.
